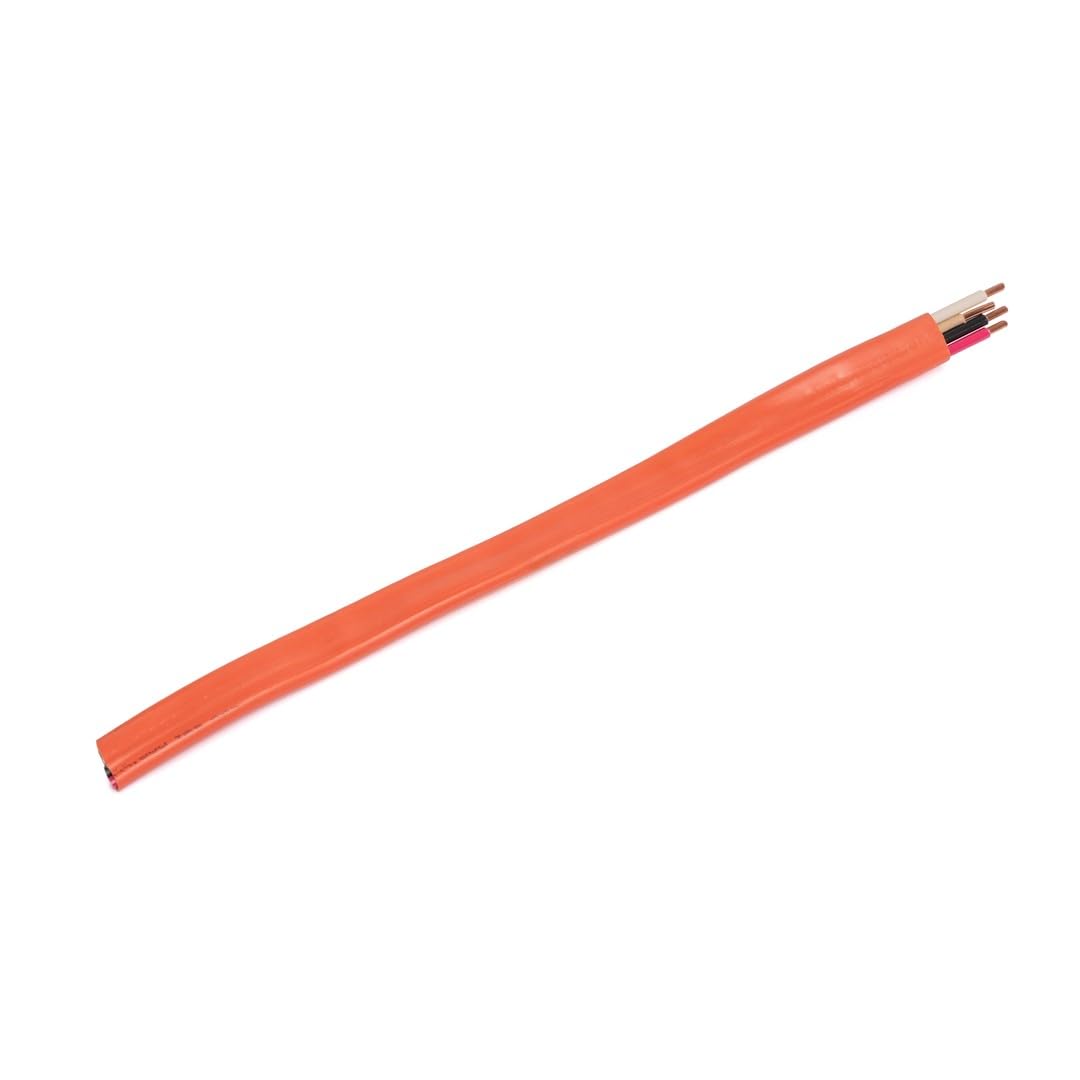

Wirenco 10/3 NM-B, Non-Mettalic, Sheathed Cable, Residential Indoor Wire, Equivalent to Romex (100Ft Cut)

Brand: wirenco

Color: Orange

Features:

• #10 AWG Residential Wire for Outlets, Switches and Other Loads
• Solid Copper (Cu) Conductors
• Equivalent to Romex NM-B - Color of Wire May not be the Same as the Picture Shown.
• For Dry Locations up to 90 degrees Celsius or 194 degrees Farenheit. For Exposed and Concealed Applications.
• 600-Volt Maximum with an Allowable Ampacity of 30 Amps

model number: 9875-#

Part Number: 9875-#

Details: Applications:
Non-metallic sheathed NM-B cable is used in normally dry installations in residential wiring, as branch circuits for outlets, lighting and other residential loads. Its applications are outlined in NEC 2008 and NEC 2011 Article 334. NM-B is rated at 600 volts and although it is rated at a conductor temperature of 90°C dry , its ampacity is limited to 60°C according to the NEC 2008 and NEC 2011. It may be fished through masonry or tile walls, where not exposed or subject to excessive moisture or dampness. NM-B cables are LEAD FREE and RoHS compliant. Equivalent to Romex NM-B.
Standards:
Meets or exceeds all applicable ASTM specifications
UL Standard 83: Thermoplastic Insulated Wires and Cables
UL Standard 719: Non-Metallic Cables
Federal Specification A-A-59544 and requirements of the NEC
Voltage rating - 600 volts

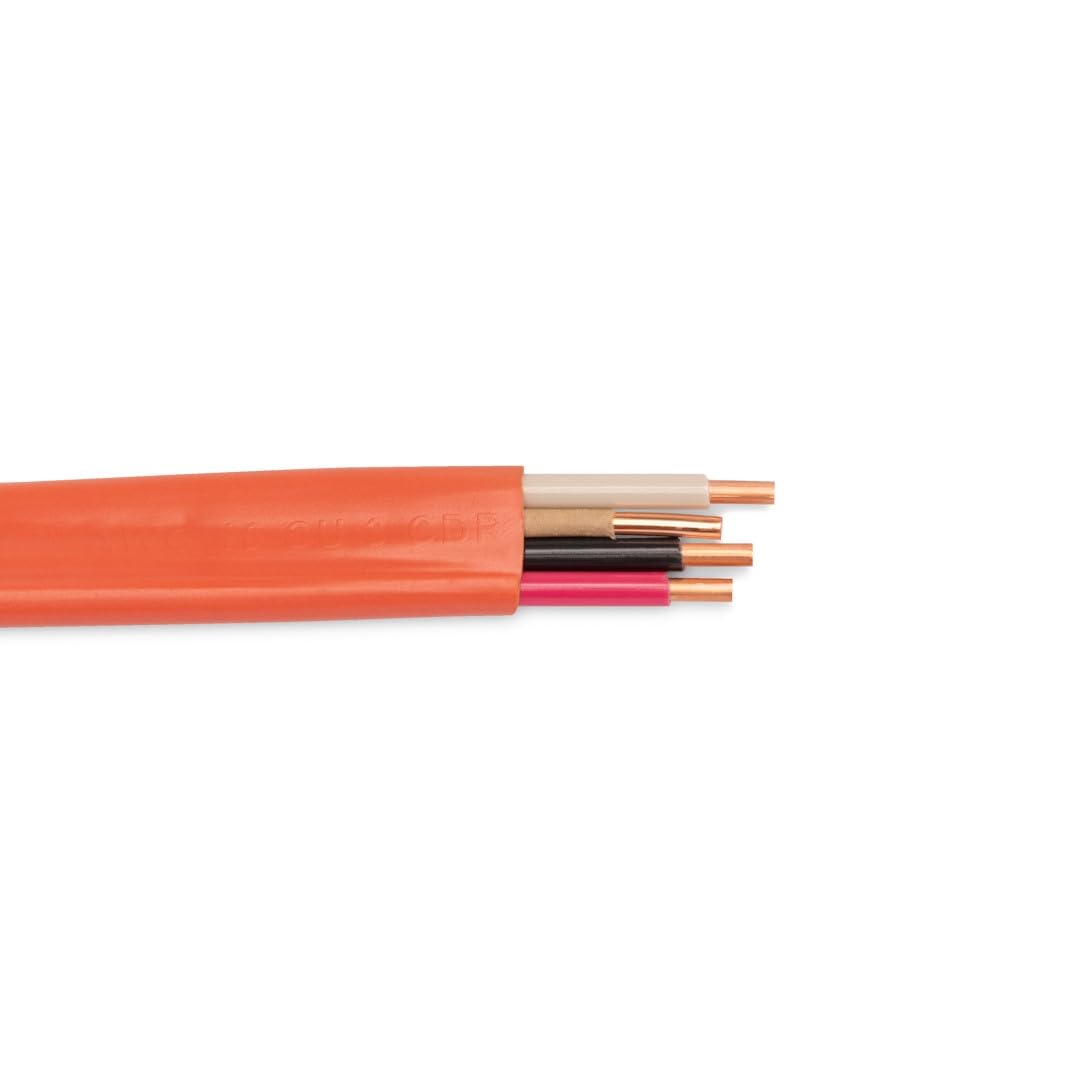

Construction:
Insulation:Color coded polyvinyl chloride (PVC) compound with a nylon covering meeting the required thickness of Type THHN. Conductor insulation is rated 90℃C
Sheath:30 mil color coded PVC sheath rated 90℃C is applied over the completed assembly
Specifications:
Size:#10 AWG
Number of Conductors:3
PVC Insulation Thickness:0.51 mm / 0.020 inches
Ground Wire Size:10 AWG
Nylon Thickness:0.100 mm / 0.004 inches
Nominal Cable Dimensions: 10.9 mm x 0.43 inches
Weight per Foot: 0.163 lbs
Allowable Ampacity: 30 Amps

EAN: 0850026183733

Package Dimensions: 16.0 x 16.0 x 6.3 inches
